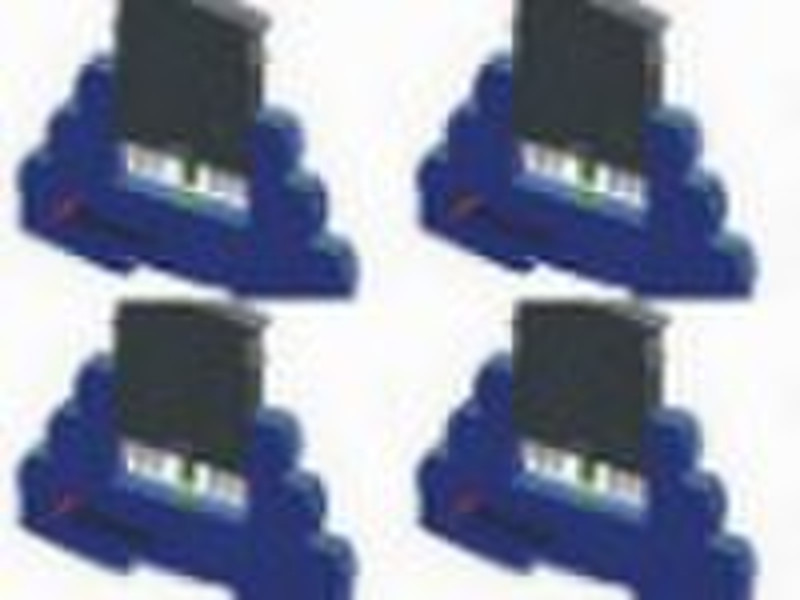

Surge Protector for Current Control System
original price: 180,00 USD
Linda Lin
Contact person
Basic Information
| Place of Origin | Fujian China (Mainland) |
|---|---|
| Brand Name | MERI |
| Model Number | TD1-13A3/TD1-13A4 |
Surge Protector for Current Control System,DCS SPD,digital SPD,data SPD Dehn 919988 & 919987 SingalPowerWorking Type Analog data DC24V Application DCS System DCS System Normal Current(8/20/us) In 5kA 5kA Max Current(8/20/us) Imax 10kA 10kA Protection Level(1Kv/us) 0.7kA UP 4-20mA-PE:600V +24V-PE: 600V 4-20 mA -GND:45V +24V-0v: 45V Protection Level(8/20/us) 5kA UP 4-20mA-PE:32V +24V-PE: 35V 4-20 mA -GND:41V +24V-0v: 42V Rating Operation Current 500 mA 500 mA Insert Resistance 0.16Ω 0.36Ω Frequency Range 0-10MHz 0-10MHz Response Time 2nS 2nS I/O Connector Terminal Block Terminal Block Grounding Terminal Block Terminal Block Protect Circuit Singal to singal Singal to ground Power to PE Power to OV Operation Tempeture -25+80 -25+80 Housing Material PA66 PA66 Degree of Protection IP20 IP20
Delivery terms and packaging
Packaging Detail: Depending on your requirement Delivery Detail: 3days
Port: Xiamen
