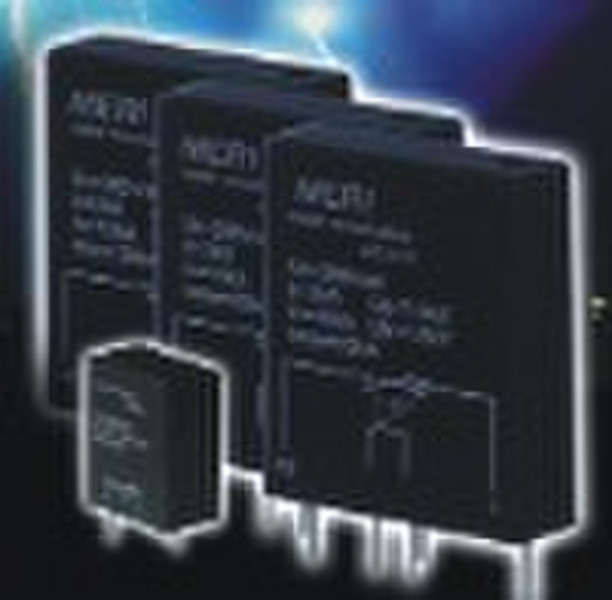

PCBA Surge Protection Module
original price: 0,49 USD
Linda Lin
Contact person
Basic Information
| Place of Origin | Fujian China (Mainland) |
|---|---|
| Brand Name | MERI |
| Model Number | P03 |
SPD,PCBA Surge Protection Module Surge Protector,surge suppressor Internal Tripping structure,Failure indicator,Remote signal pin Cited patent technology and circuit board mounted Pseries modular surge protector is a microchip with tripping,safety fuse,tripping remote dry contact,integrated into a module with special components.Maximum discharge current is 20kA, is capable of replacing external surge protective device, therefore reducing total customer investment cost. P03/175P03/385EN61643-11 CLASS III CLASS III DIN VED0675-6 D D Nominal System Voltage Un 120v 230v Max Cont Operating Voltage Uc175v385vNominal Discharge Current (8/20/us) In3kA3kaMax Current(8/20/us) Imax 10kA 10KA Max Discharge Current(8/20us) Imax 10kA 10kA Limit Voltage Ur Response time Tn LESS THAN 25nS LESS THAN 25nS Leakage current LESS THAN 2 uA LESS THAN 2 uA Operation temperature Tu -40°C- 80°C -40°C- 80°C Fault voltage Uv 230V/5sec 470v/5sec Enclosure material PBT/PA-F UL94V-0 Remote signal contact Optional Optional Packing quantity 200pcs 200pcs
Delivery terms and packaging
Packaging Detail: according to your requirement Delivery Detail: 2 week
Port: Xiamen
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
